Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Brand Name : Vanwin Tracking

Model Number : VW-M710WD

Certification : ISO9001; CE

Place of Origin : Shenzhen,Guandong

MOQ : 1 pc

Price : negotiated

Payment Terms : T/T,Western Union,Paypal;

Supply Ability : 5000 pcs per month; Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Delivery Time : 1-3 working days

Packaging Details : Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn

Power supply : 24V±10% DC

Screen Size : 7 inch Wireless monitor

Screen Type : 16:9

Resolution : 800*R.G.B*480

Car Make : Bus, truck, other special vehicles

System : PAL&NTSC auto-switching

2.4G wireless transmitter : 100M in open area

Contact Now

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Wireless Reversing camera kit Highlights

  • 100% Adaptive Wide Voltage: Flexible vehicle compatibility support wide voltage 9~36V, supports almost all vehicle power supply voltage.
  • Super Long Transmission Distance: Adopted 2.4G digital wireless technologies, embedded processor and operating system, low power consumption, no radiation, flicker-free and clear image. Non-interference Non-delay transmission in the long distance of 328ft.
  • Multiple Installation Methods: We provide three installation methods of this backup camera system, absorption on the windscreen and fixing on the center console, both of which can be installed hands-on with some simple tools.
  • Night Vision and Waterproof Design: This wireless backup camera is designed with 18 Infrared LEDs, night vision wireless backup camera performs well at night, aluminum alloy material shell and outside hanging design, it has anti-vibration and anti-corrosion anti-weather ability, make it suitable for different environments.
  • Super Wide Visual Range: The backup camera and monitor can be adjusted in angle up and down, and the camera of reversing has a visual wide angle in more than 120-degree, which can solve your problem of reversing rear-view perfectly.

Main Specification

7inch 16:9 7 inch Wireless monitor
Stents distance:110mm-200mm
Resolution:800*R.G.B*480
PAL&NTSC auto-switching
Power supply:24V±10%
Built-in 2.4G wireless function,can receive audio/vedio
Audio/video；1Way 2.4G wireless video&audio input
2.4G in open area:100M
Built-in speaker
OSD menu,remote control
Touch button screen
One wireless waterproof camera
Dimention:180*121*24mm
embedded with 2.4G transmitter
Image sensor: 1/4 420TVL SONY CCD
Definition:420TV line
Miminum illumination:05.lux
image angle:120°
System:PAL&NTSC auto-switching
2.4G wireless transmitter:100M in open area
Power supply :12V~24V±10%
Water proof class :IP67/68
Aluminum alloy shell, outside hanging design
special for bus, truck.
Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
Standard accessories L1.5m power line

The charact-eristicof 2.4G digtal wireless: Highiy secure, use the digital code receiver technology ,
will not be affected by other similar equipment interference or to interfere with other equipment,
the image of good stability, there will have a delay, but does not affect the normal revesing image.

Pictures

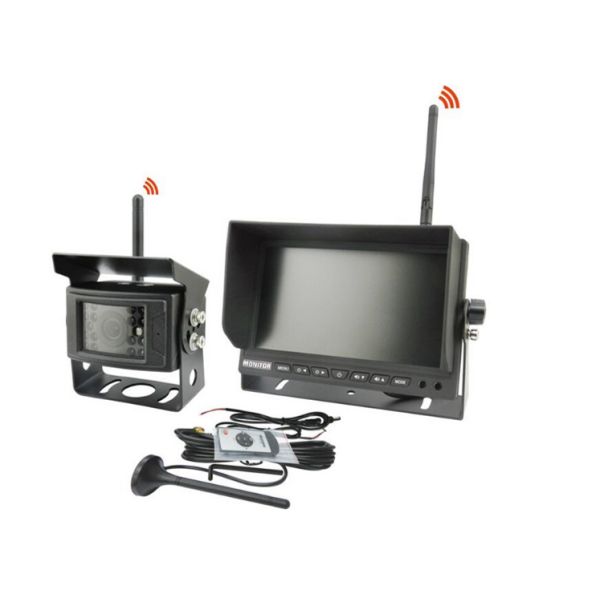

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Truck Back Up Reversing Camera Kit 2.4G Wireless 7 Inches Car Monitor

Package includes:
1 * User Manual
2 * Short Antenna
1 * Remote Control
1 * U-shaped Bracket / 1 * Suction Cup Bracket
1 * Wireless backup monitor
1 * Wireless backup Camera
1 * Antenna Extension Cable
1 * DC 5.5 Power Cable for Camera
